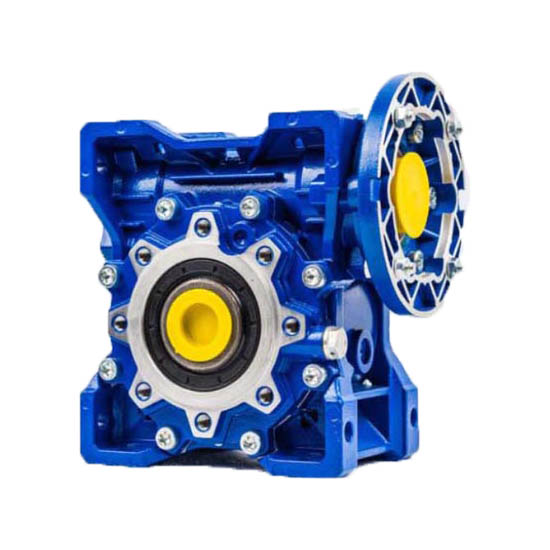

NMRV WORM GEAR
TECHNICAL PARAMETERS
| Model | Ratio | Power | Flange | |
|---|---|---|---|---|
| KW | HP | |||
| NMRV030 | 7.5-80 | 0.06-0.18KW | 0.08-0.25 | 56B5/ 63B5 |
| NMRV040 | 7.5-100 | 0.06-0.55KW | 0.08-0.75 | 63B5/71B5 |
| NMRV050 | 7.5-100 | 0.12-0.75KW | 0.16-1.0 | 70B5/80B5 |
| NMRV063 | 7.5-100 | 0.25-1.5KW | 0.33-2.0 | 71B5/80B5/90B5 |
| NMRV075 | 7.5-100 | 0.55-4KW | 0.75-0.5 | 80B5/90B5/100B5/112B5 |
| NMRV090 | 7.5-100 | 0.75-4KW | 1.0-5.0 | 90B5/100B5/112B5 |
| NMRV110 | 7.5-100 | 0.75-7.5KW | 1.0-10.0 | 90B5/100B5/112B5/132B5 |
| NMRV130 | 7.5-100 | 0.75-11KW | 1.0-15.0 | 100B5/112b5/132B5/160B5 |
